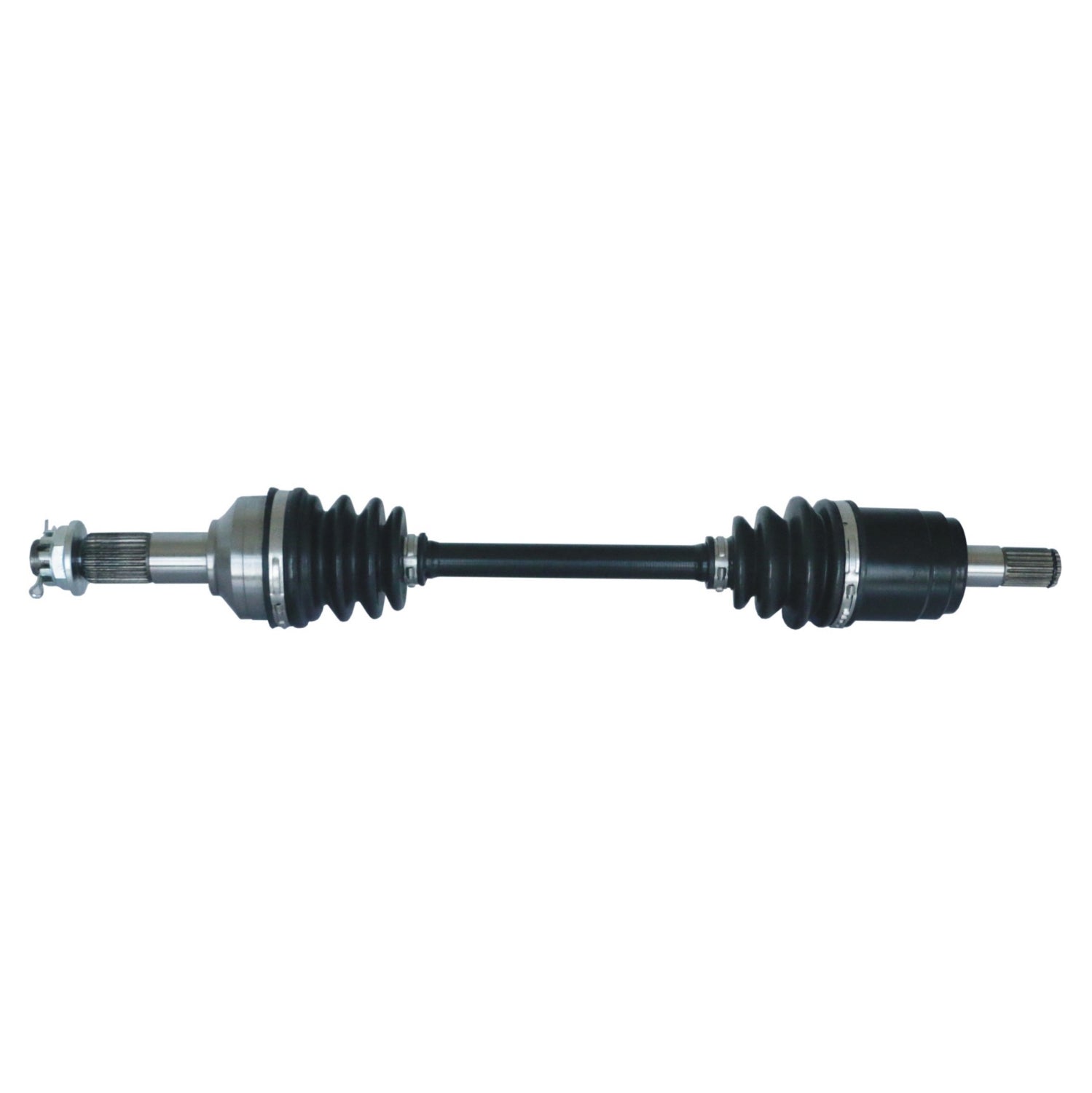

TrakMotive HON-7029 Axle

• Handles up to 20% more torque than OE axles (torque measured at axle breakage during testing)
• Heat treated chrome steel solid center shaft
• High quality neoprene (CR rubber) dust boots (greater flexibility as well as heat and chemical resistance than original equipment boots)
• High performance moly grease in all axle joints rated to 180°C / 356°F (moly grease provides better metal adhesion and resistance to high shock loads)
• Meets all original equipment specifications for travel and joint articulation

Specifications:

• Axle Nut Hex Size (mm): 30
• Axle Nut Thread Size: M20x1
• Inboard Joint Type: Male
• Number Of Inboard Splines: 20
• Outboard Joint Type: Conventional
• Short Description: ATV CV Axle Assembly
• Hazardous Material: No
• Minimum Order Quantity: 1
• Number Of Outboard Joint Bolt ...: 0
• Axle Nut Included: Yes

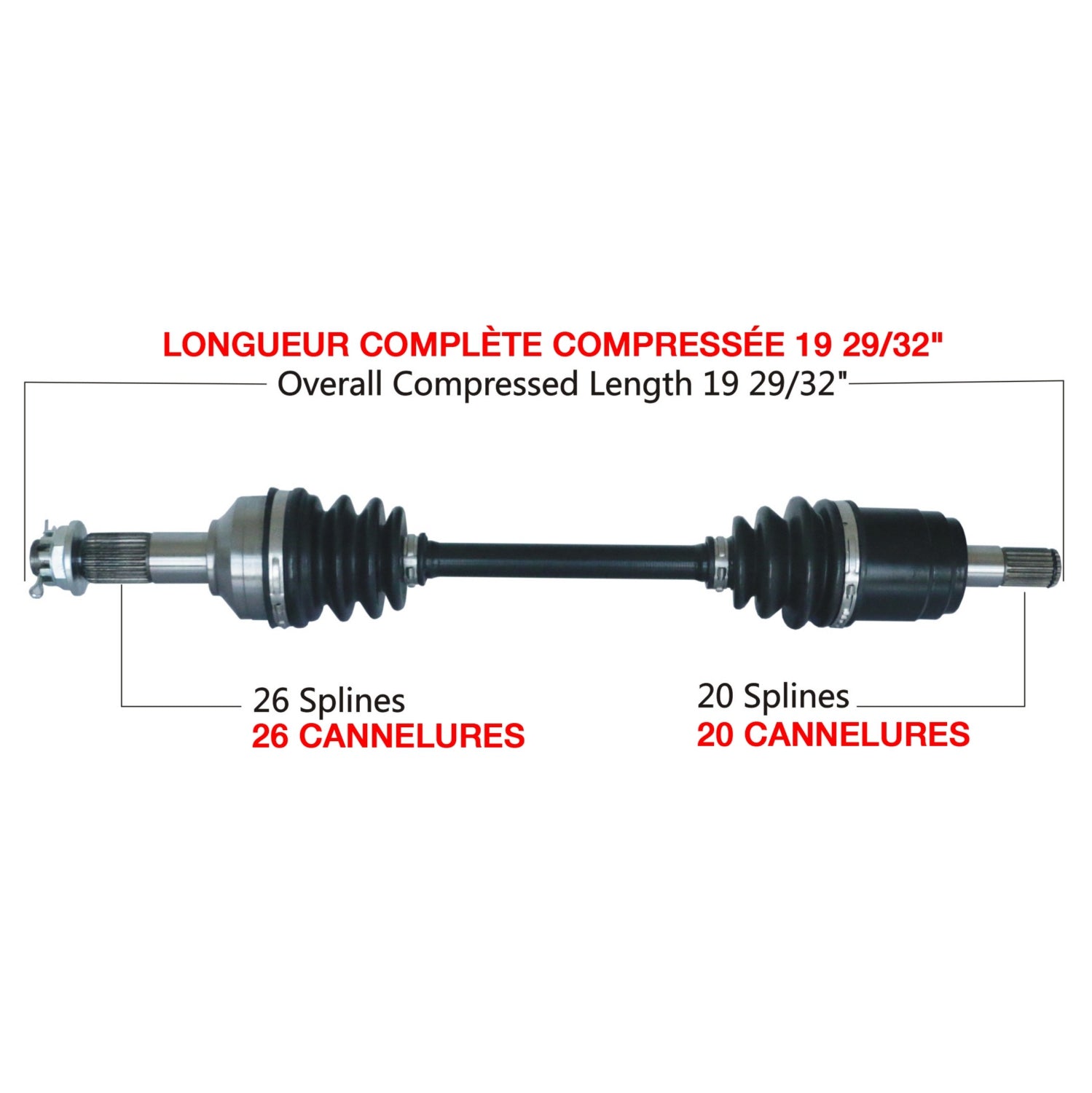

• Overall Compressed Length (in): 19.9
• Overall Compressed Length (mm): 506
• Item Level GTIN: 00844084084774
• Inboard Shaft Connection Style: Male
• Quantity Per Application: 1
• Outboard Shaft Connection Style: Conventional
• Axle Nut Head Type: Hex
• Axle Nut Height (in): .71
• Axle Nut Length (in): 1.33
• Axle Nut Height (mm): 18
• Axle Nut Length (mm): 35
• Axle Nut Locking Type: Cotter Pin
• Axle Nut Hex Size (in): 1.17
• Number Of Outboard Shaft Bolts: 0
• ABS Ring Type: 0
• ABS Tone Ring Included: No
• ABS Ring Tooth Count: 0
• Outboard Joint Boot Material: Neoprene
• Inboard Joint Boot Material: Neoprene
• Grade Type: Premium
• Axle Nut Socket Size: 30
• California Proposition 65 Required: N
• Number Of Outboard Splines: 26
• Country of Origin: China
• Weight - Each (Gross Pounds): 7.5400
• Height - Each (Inch): 4.3300
• Length - Each (Inch): 21.6500
• Width - Each (Inch): 4.3300

TrakMotive #:

• HON-7029

UPCs:

• 844084084774

Fitment:

• Honda TRX500FM6 4x4 Foreman Rubicon EPS (2017-2018)
• Honda TRX500FA6 4x4 Forman Rubicon Auto DCT IRS EPS (2016)
• Honda TRX500FM5 4x4 Foreman Rubicon IRS (2016)
• Honda TRX500FE2 4x4 Foreman ES EPS (2015-2019)
• Honda TRX500FM1 4x4 Foreman (2015-2019)
• Honda TRX500FM6 4x4 Foreman Rubicon IRS EPS (2015-2016, 2019)
• Honda TRX500FA5 4x4 Foreman Rubicon Auto DCT IRS (2015-2016)
• Honda TRX500FE1 4x4 Foreman ES (2015-2016)
• Honda TRX500FM2 4x4 Foreman EPS (2015-2016)
• Honda TRX500FA6 4x4 Foreman Rubicon Auto DCT IRS EPS (2015)
• Honda TRX500FE 4x4 Foreman ES (2014)
• Honda TRX500FM 4x4 Foreman (2014)
• Honda TRX500FPE 4x4 Foreman ES EPS (2014)

Please confirm that this is the correct part for your vehicle before ordering.
