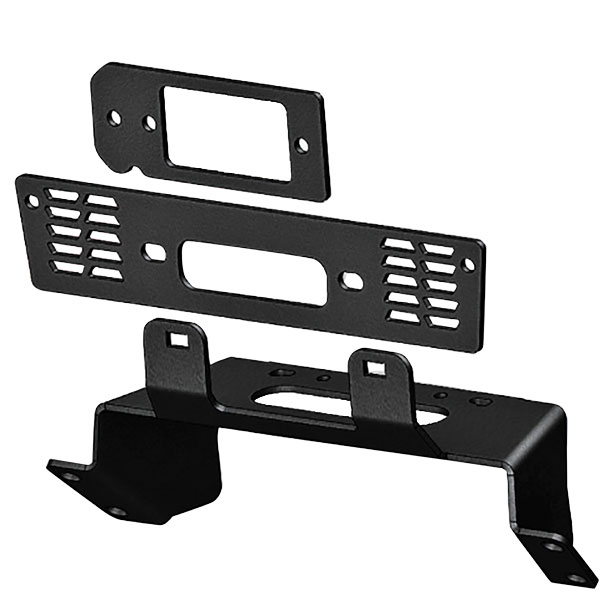

KFI 101560 Winch Mount for Polaris Ranger

KFI #:

• 101560

Fitment:

• Ranger 400 (Mid-Size) (2010-2014)
• Ranger 500 (Mid-Size) (2011-2013)
• Ranger 500 (Mid-Size) (2017-2022)
• Ranger 570 (Mid-Size) (2014-2021)
• Ranger 800 (Mid-Size) (2013-2014)
• Ranger Crew 500 (Mid-Size) (2011-2013)
• Ranger Crew 570 (Mid-Size) (2014-2021)
• Ranger EXT (Mid-Size) (2015-2016)
• Ranger EV (Mid-Size) (2010-2022)
• Ranger 500 ('09-10)
• Ranger 570 (800 Body Style / Round Tube Frame) ('16-2025)
• Ranger 700 (2009)
• Ranger 800 ('10-14)
• Ranger 800 6x6 ('10-16)
• Ranger Crew 570 ** (800 Body Style / Round Tube Frame) ('17-2025)
• Ranger Crew 800 ('10-13)
• Ranger Crew 800 ** (2014)
• Ranger Crew Diesel ** (900) ('12-14)
• Ranger Crew Diesel (900) ('11-14)
• Ranger XP 700 (2009)
• Ranger XP 800 (2012)

* = Requires the purchase of #UTV-WEK (wire extension kit) Due to location of battery on Ranger.

Designed for the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / U45w-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x / AS-50wx
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
  • May require adding washers to shim up to fit due to size
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
• WARN: Vantage 4000lbs / ProVantage 4500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500, 3500
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 6.600" bolt pattern mount-up
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
• Traveller: 1078311
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• QUADBOSS: RP25 / RP35

Please confirm that this is the correct part for your vehicle before ordering.
