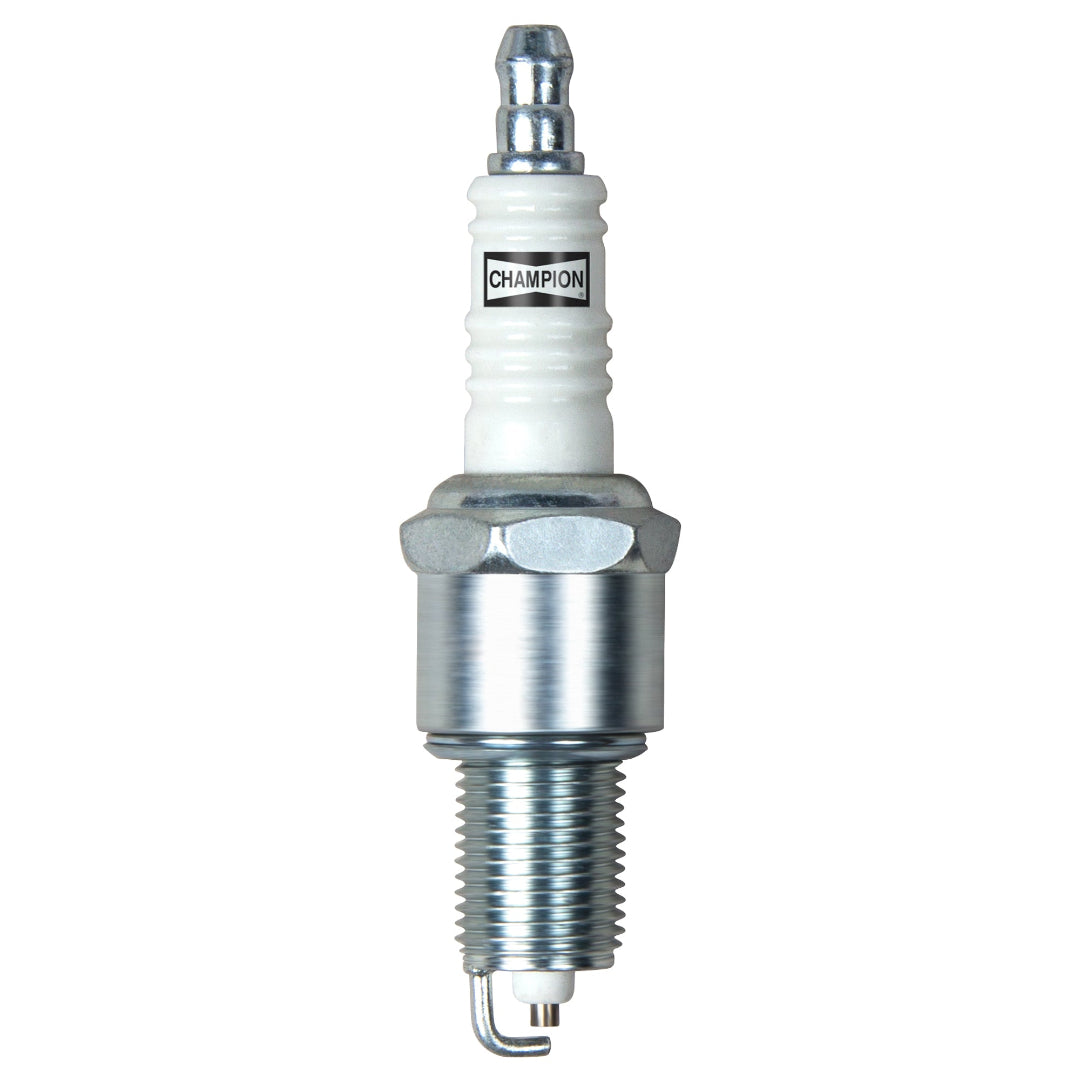

Champion 405 Spark Plug

Dependable performance. This Champion® spark plug features a copper core electrode that provides increased conductivity and heat control for good overall wear.

• Copper Plus - Dependable Performance and Durability
• Copper core center electrode allows for accurate control of heat range for longer life
• Superior corrosion resistance
• Built to ISO and SAE standards for proven performance

Specifications:

• Plug type: RN14YC
• Center electrode tip material: Copper
• Pre-gap size (IN): 0.035
• Pre-gap size (MM): 0.90
• Ground electrode quantity: 1
• Hex size (MM): 20.650
• Hex size (IN): 0.813
• Insulator height (IN): 0.12
• Manufacturer heat range: 14
• Seat type: Flat
• Reach (IN): 0.75
• Thread diameter (MM): 14.000
• Thread diameter (IN): 0.551
• Resistor type: Yes
• Ground electrode core material: Nickel
• Washer(s) included: Yes
• Classification: Champion Copper Plus
• Grade type: Standard Replacement
• Electrical terminal type: Non-Removable Nut
• Ground electrode tip material: Nickel
• Hex type: Hex
• Center electrode design: Standard
• Washer type: Crush
• Indexed: No
• Part description: Spark Plug
• Center electrode diameter (Inch) (IN): 0.1
• Ground electrode material: Nickel Copper Alloy
• Installed height (Inch) (IN): 2.24
• Insulator projection (Inch) (IN): 0.12
• Taper diameter (Inch) (IN): 0.25
• Subject to Prop 65 (Yes/No): No

Champion #:

• 405

Fitment:

• Arctic Cat Sno Pro 120 (2010-2013)
• Arctic Cat ZR 120 (2014-2021)
• Arctic Cat ZR 200 ES (2019-2021)
• Arctic Cat ZR 200 (2018)
• Argo Conquest 6x6 (2006)
• Argo Conquest 8x8 (2006)
• Yamaha SRX120 SRX120R (2019-2021)
• Yamaha SRX120 SRX120 (2015-2018)
• Yamaha SRX120 SX120 (2014)
• Yamaha SXR2 SnoScoot ES (2021)
• Yamaha SnoScoot (2018)
• Yamaha YDR-A SVL Concierge 6-Passenger (2011)
• Yamaha YDR-A SVS Concierge 4-Passenger (2011)
• Yamaha YDR-A The DRIVE EFI (2013)
• Yamaha YDR-A The DRIVE PTV (2011-2013)
• Yamaha YDR-A The DRIVE (2011-2013)
• Yamaha YTF-1 Adventurer One (2009-2013)
• Yamaha YTF-1A Adventurer 2+2 (2014-2017)
• Yamaha YTF-1A Adventurer One (2014-2018)
• Yamaha YTF-1A Adventurer Sport 2+2 (2018)
• Yamaha YTF-1A Adventurer Sport (2014-2018)
• Yamaha YTF-2 Adventurer Two (2009-2013)
• Yamaha YTF-2 Fairway Lounge (2011)
• Yamaha YTF-2A Adventurer Two (2017-2018)
• Yamaha YTF-2A Fairway Lounge (2014-2018)
• Yamaha YXP1000A Pro Hauler 1000 (2004-2005)
• Yamaha YXP700A Pro Hauler 700 (2004-2006)
