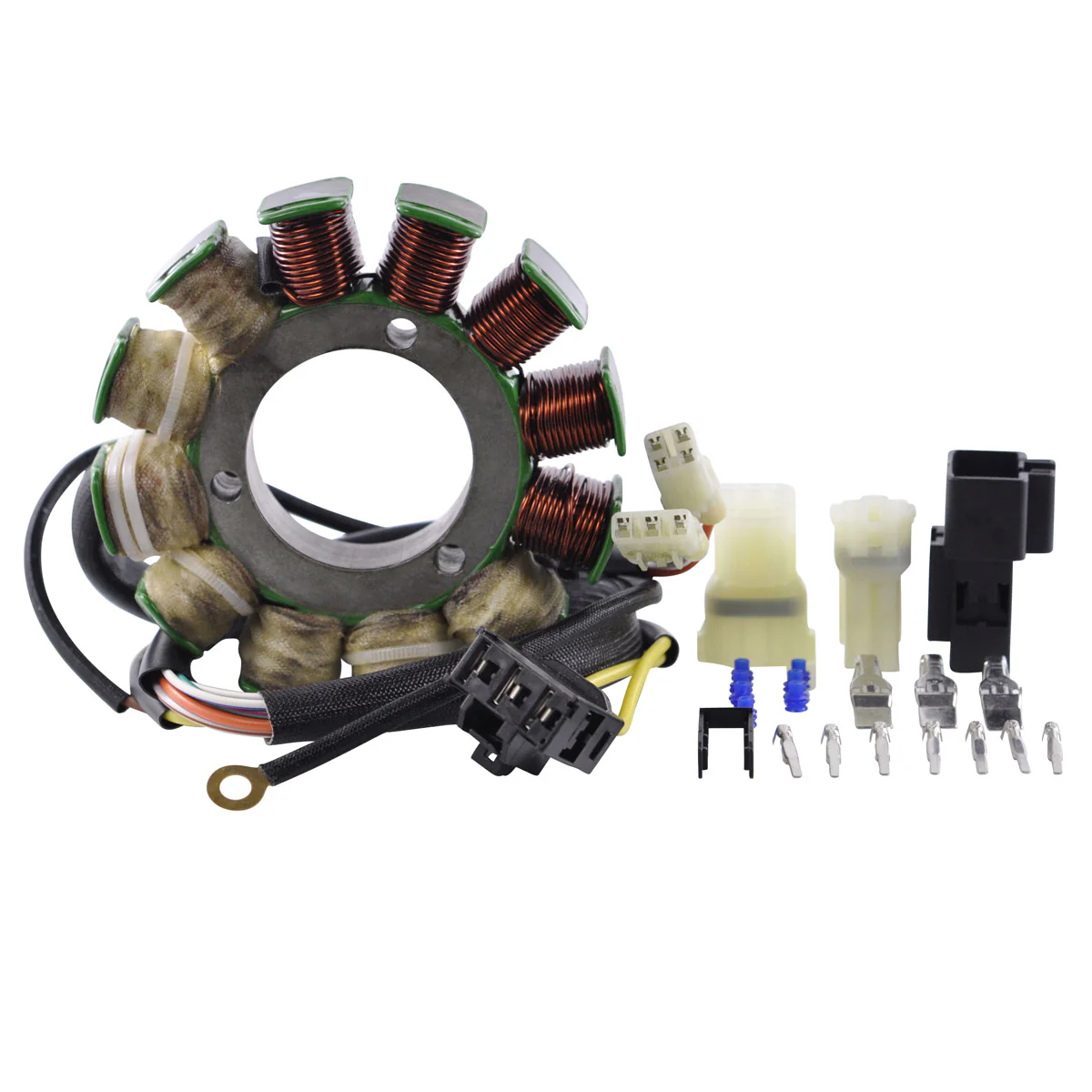

RMSTATOR RM01228 Stator for Arctic Cat 2007-2014

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

Dimensions

• Interior diameter: 47 mm

• Exterior diameter: 114 mm

• Thickness: 20 mm

• Length of wires stator to plug: 500 mm

Other specifications

• Number of wires: 11

• Number of plugs: 3

• Number of terminals: 10


Wire to wire resistance

Alternator: Yellow to Yellow = 0.4 ohms+/-20%

Fuel Pump: Blue/White to Blue/White = 16 ohms+/-20%

Source Coil: 1 Green/Red to Brown/White = 8 ohms+/-20%

Source Coil 2: Green/Red to Black/Red = 8 ohms+/-20%

Other: Orange to Orange = 2 ohms+/-20%

OEM #s:

• 3007-693
• 3007-545
• 3007-447
• 3007-617
• 3007-623
• 3007-711
• 3007-701
• 3007-314
• 0902-049

Please confirm that this is the correct part for your vehicle before ordering.
