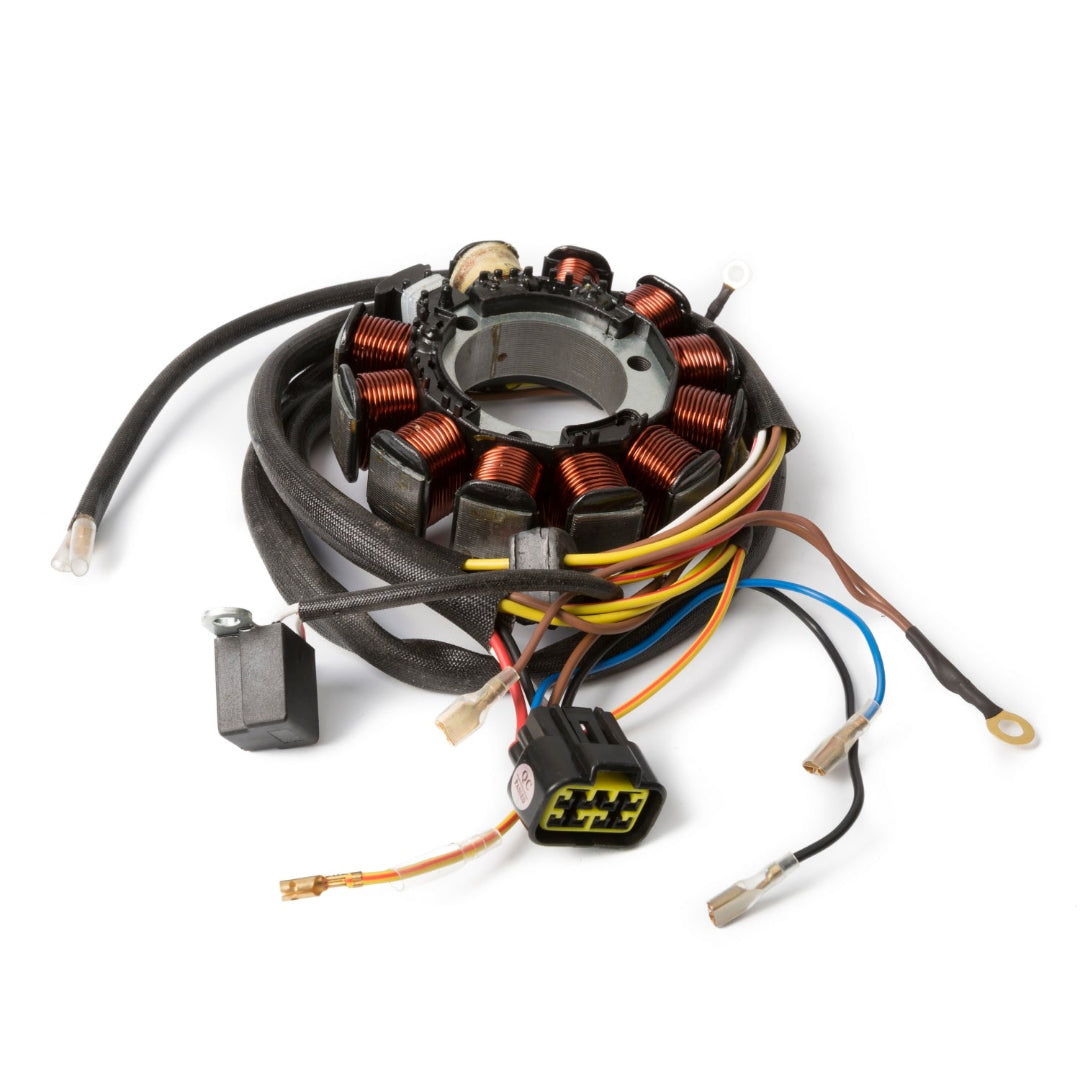

Kimpex 285643 Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

• Internal Diameter: 47 mm
• External Diameter: 114 mm
• Thickness: 20
• Number of wires: 7
• Number of connectors: 9
• Number of terminals: 12
• Notes: Rectangular 2x2-pins rubber connectors

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
